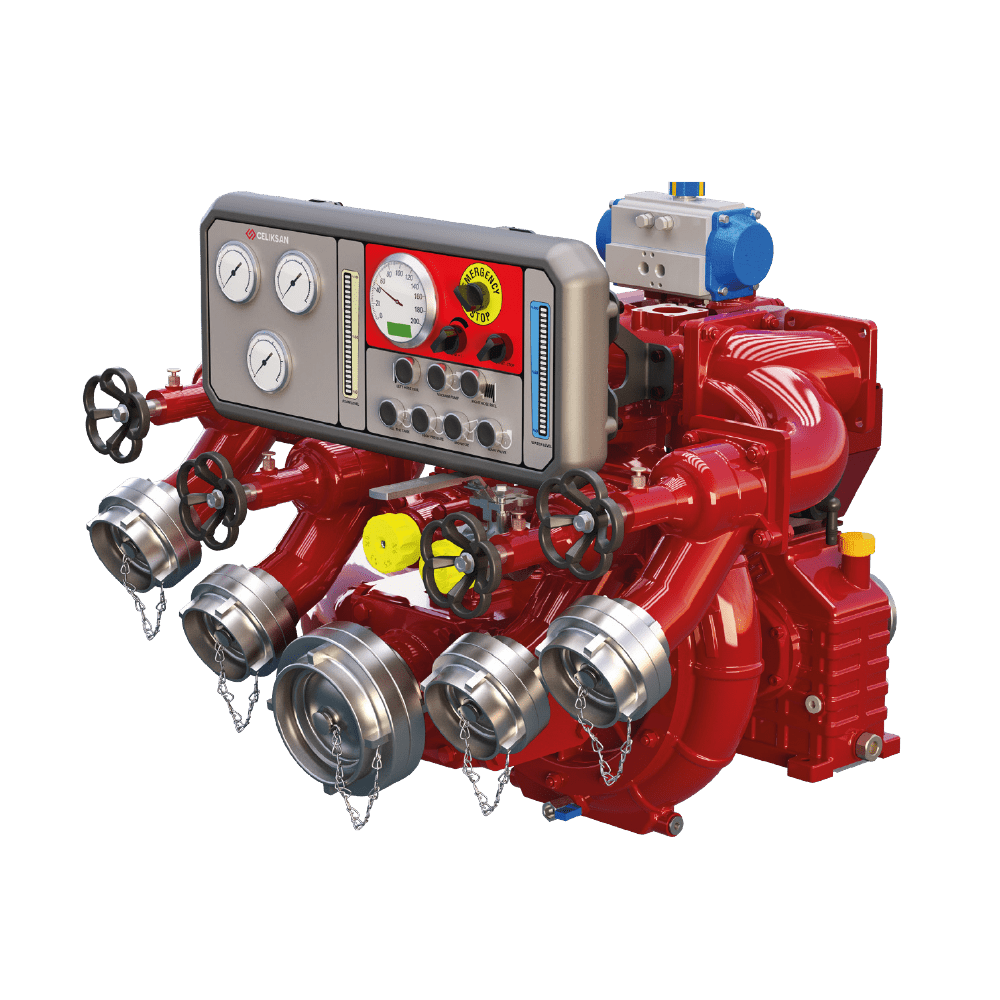

CN 10-200 / 40-250
CN 10-200 / 40-250

CN 10-200 / 40-250

It is the patented pioneer series of Çeliksan company. This series, which is one of the world's market cornerstones, provides a service that never disappoints by providing unparalleled performance in the segment of fire pumps developed through research and development studies, where competition is at the highest level with its modern lines.

  • Product Features
  • Technicial Specifications
  • Service Forms
Low and high pressure pump
Compatible with a wide variety of modifications
Complies with EN 1028 standards
(Document No: 056632)
Maintenance-free mechanical seal and vacuum pump
Easy to clean high pressure filter
Light alloy high quality anodized aluminum body
Suitable mounting design for vehicles all over the world
High performance automatic suction system
Low pressure single stage aluminum fan
High pressure single stage bronze fan
High pressure by-pass system
Low sound level
Hot water tank for use in cold climate
Thermal drain valve 72°C
3000 SERIES CNH 10-200 (RPM Increaser) CNH 10-200 (ML)
Low Pressure Flow Rate 2000 l/min (528 gpm) 2000 l/min (528 gpm)
High Pressure Flow Rate 40 bar 250-400 l/min (66-105 gpm) 40 bar 250-400 l/min (66-105 gpm)
Normal Pressure 10 bar (145 psi) 10 bar (145 psi)
Normal Pump Speed 3000 rev/min (rpm) 3000 rev/min (rpm)
Maximum Pump Speed 3200 rev/min (rpm) 3200 rev/min (rpm)
Minimum Idle Speed 700 rev/min (rpm) 700 rev/min (rpm)
Minimum Suction Speed 2500 rev/min (rpm) 2500 rev/min (rpm)
Maximum Suction Speed 3200 rev/min (rpm) 3200 rev/min (rpm)
Maximum Pressure 54,5 bar (790 psi) 54,5 bar (790 psi)
Weight 122 kg (269 lbs) 112 kg (247 lbs)
Suction Speed, 7.5 m depth 30 seconds 30 seconds
Operating Temperature -15 °C (5 °F) / +55 °C (131 °F) -15 °C (5 °F) / +55 °C (131 °F)
Dimensions (L x W x H) (mm/inch) 845 x 827 x 741 (33.3 x 32.6 x 29.2) 845 x 857 x 741 (33.3 x 33.7 x 29.2)
Thermal Drain Valve 72 °C (161 °F) 72 °C (161 °F)
Reducer Ratio Options 1/2,04 - 1/2,55 - 1/2,95 1/1
