Products

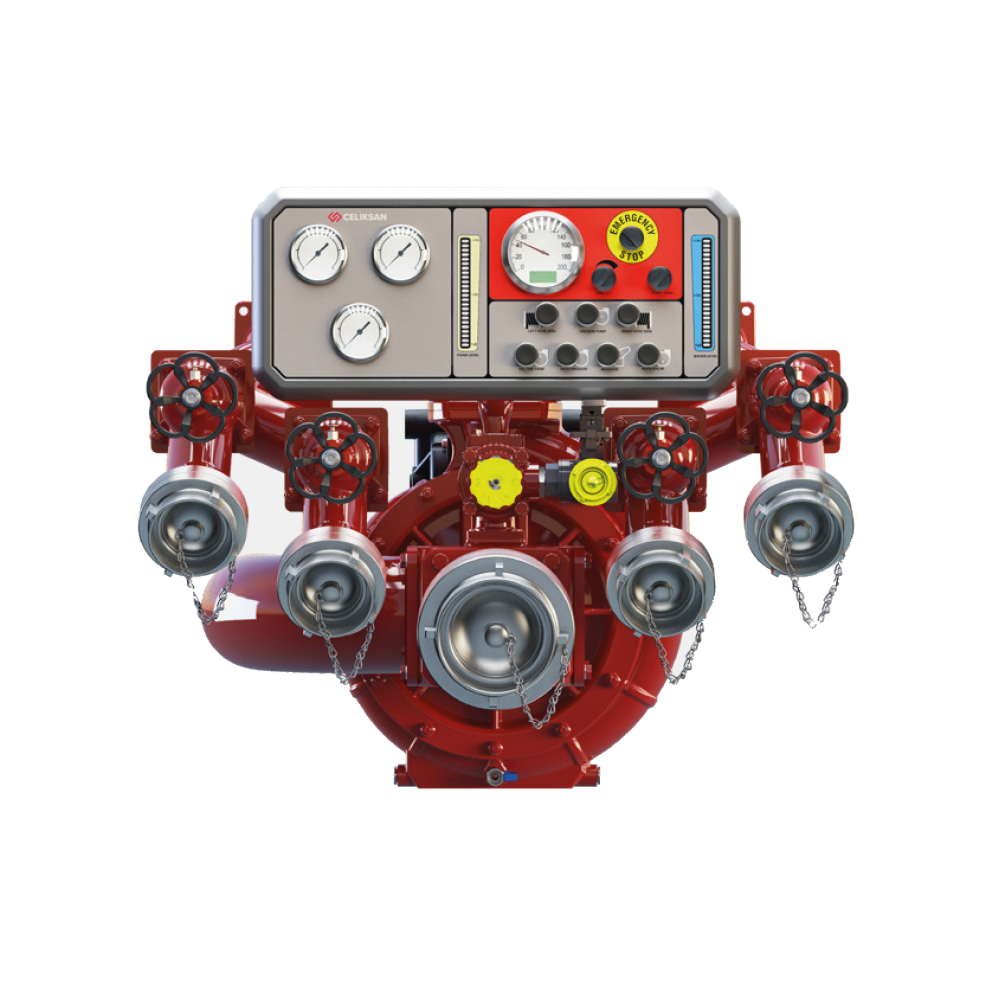

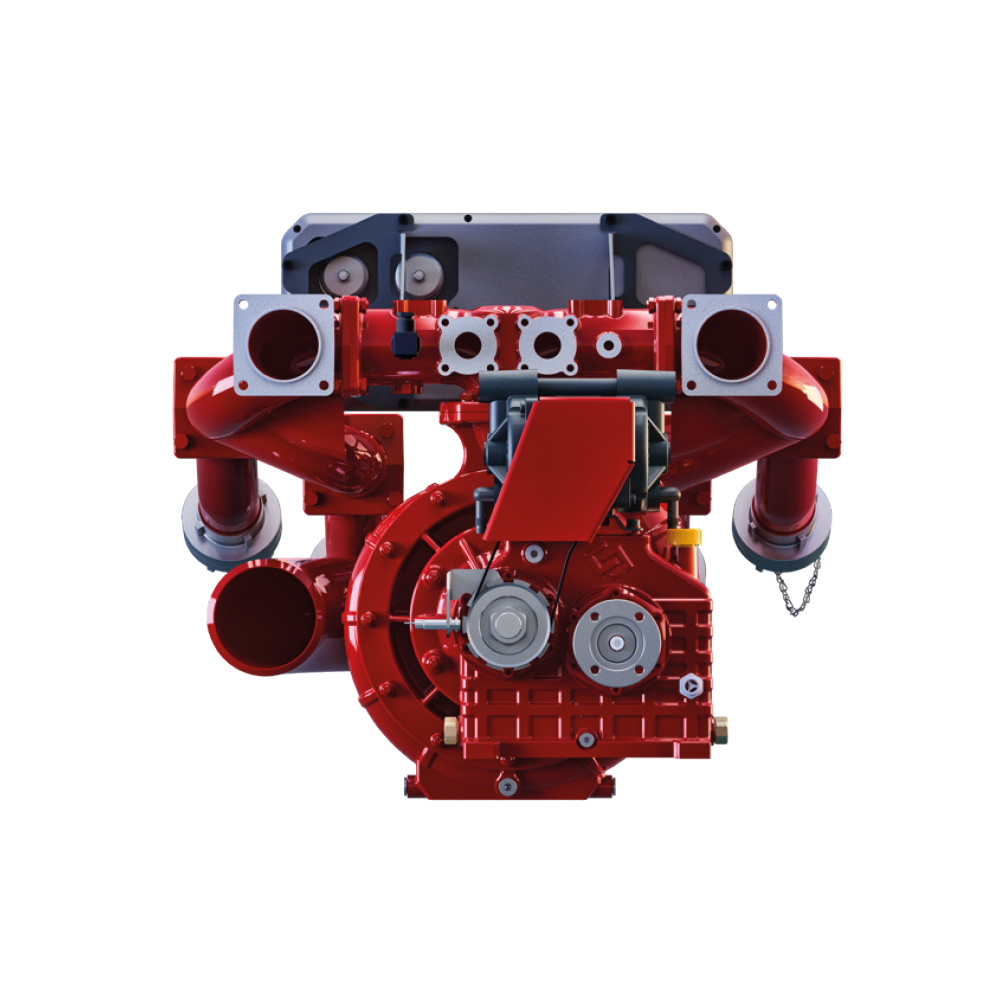

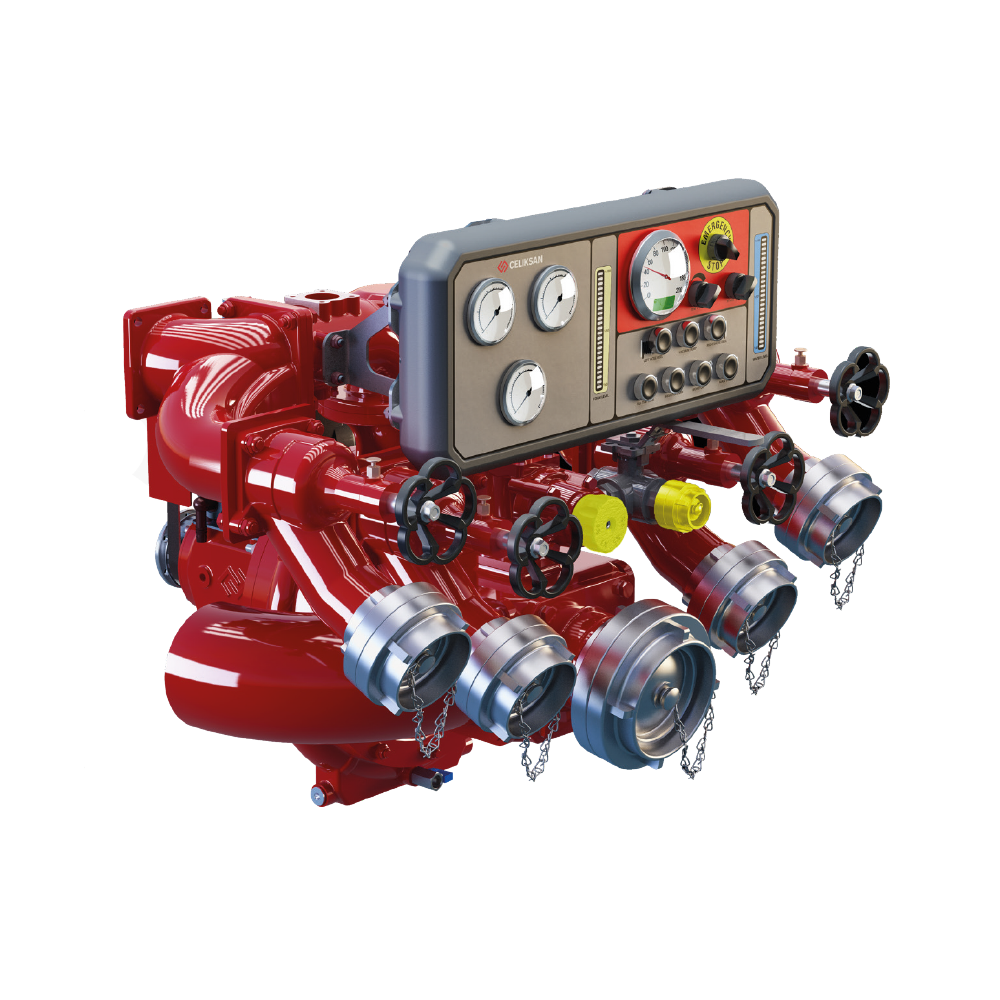

CN 10-200
CN 10-200

CN 10-200

It is the patented pioneer series of Çeliksan company. This series, which is one of the world's market cornerstones, provides a service that never disappoints by providing unparalleled performance in the segment of fire pumps developed through research and development studies, where competition is at the highest level with its modern lines.

  • Product Features
  • Technicial Specifications
  • Service Forms
Low pressure pump
Compatible with a wide range of modifications
Complies with EN 1028 standards
(Document No: 056632)
Maintenance-free mechanical seal and vacuum pump
Lightweight alloy, high quality anodized aluminum body
Suitable Mounting design for vehicles all over the world
High performance automatic suction system
Low pressure with single stage aluminum fan
Low sound level
Hot water tank for use in cold climates
Thermal drain valve 72°C
2000 SERIES CN 10-200 (RPM Increaser) CN 10-200 (ML)
Low Pressure Flow Rate 2000 l/min (528 gpm) 2000 l/min (528 gpm)
High Pressure Flow Rate - -
Normal Pressure 10 bar (145 psi) 10 bar (145 psi)
Normal Pump Speed 3000 rev/min (rpm) 3000 rev/min (rpm)
Maximum Pump Speed 3200 rev/min (rpm) 3200 rev/min (rpm)
Minimum Idle Speed 700 rev/min (rpm) 700 rev/min (rpm)
Minimum Suction Speed 2500 rev/min (rpm) 2500 rev/min (rpm)
Maximum Suction Speed 3200 rev/min (rpm) 3200 rev/min (rpm)
Maximum Pressure 17 bar (246 psi) 17 bar (246 psi)
Weight 109 kg (240 lbs) 87 kg (192 lbs)
Suction Speed, 7.5 m depth 30 seconds 30 seconds
Operating Temperature -15 °C (5 °F) / +55 °C (131 °F) -15 °C (5 °F) / +55 °C (131 °F)
Dimensions (L x W x H) (mm/inch) 845 X 787 x 618 (33.3 x 31 x 24.4) 845 x 818 x 618 (33.3 x 32.2 x 24.4)
Thermal Drain Valve 72 °C (161 °F) 72 °C (161 °F)
Reducer Ratio Options 1/2,04 - 1/2,55 - 1/2,95 1/1
